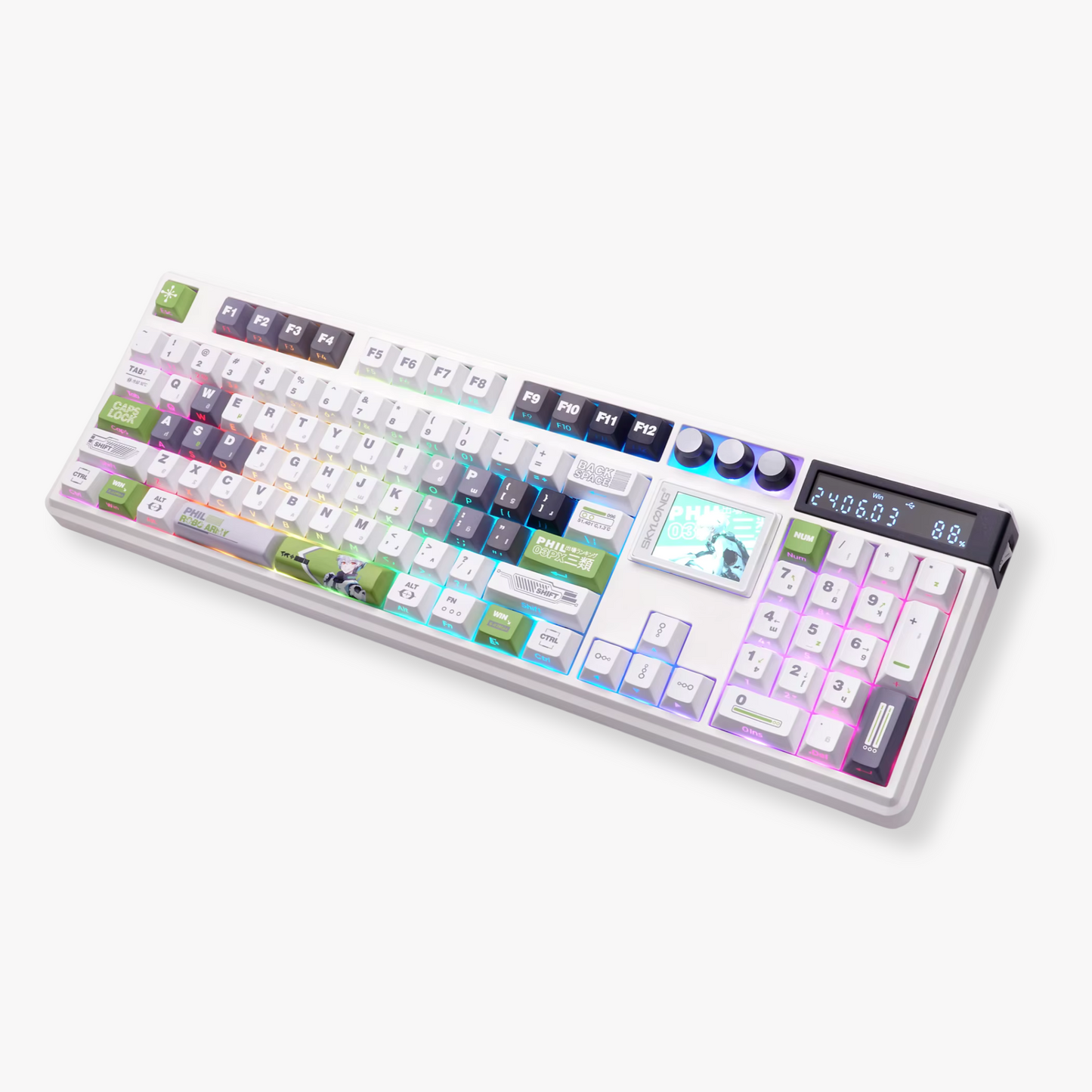

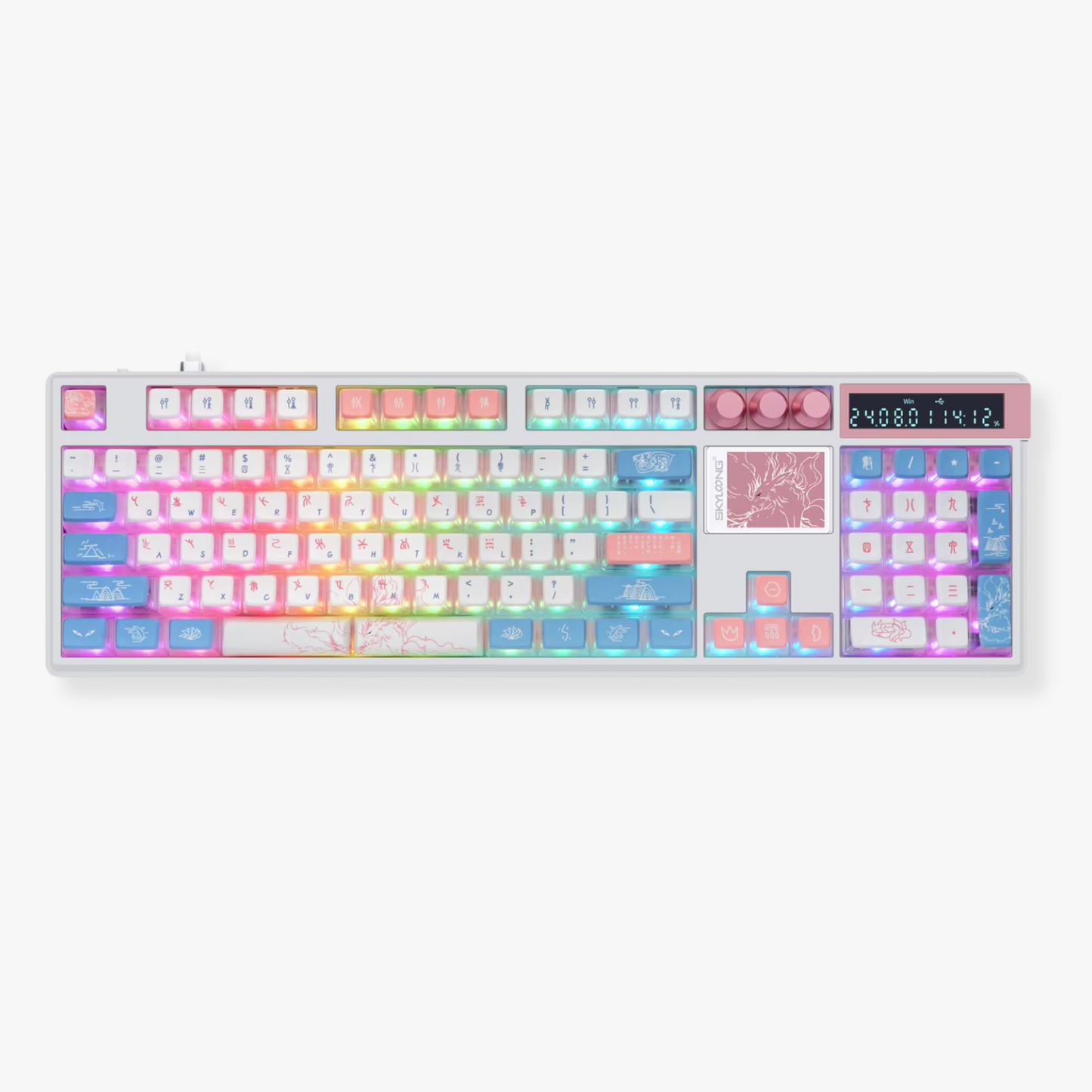

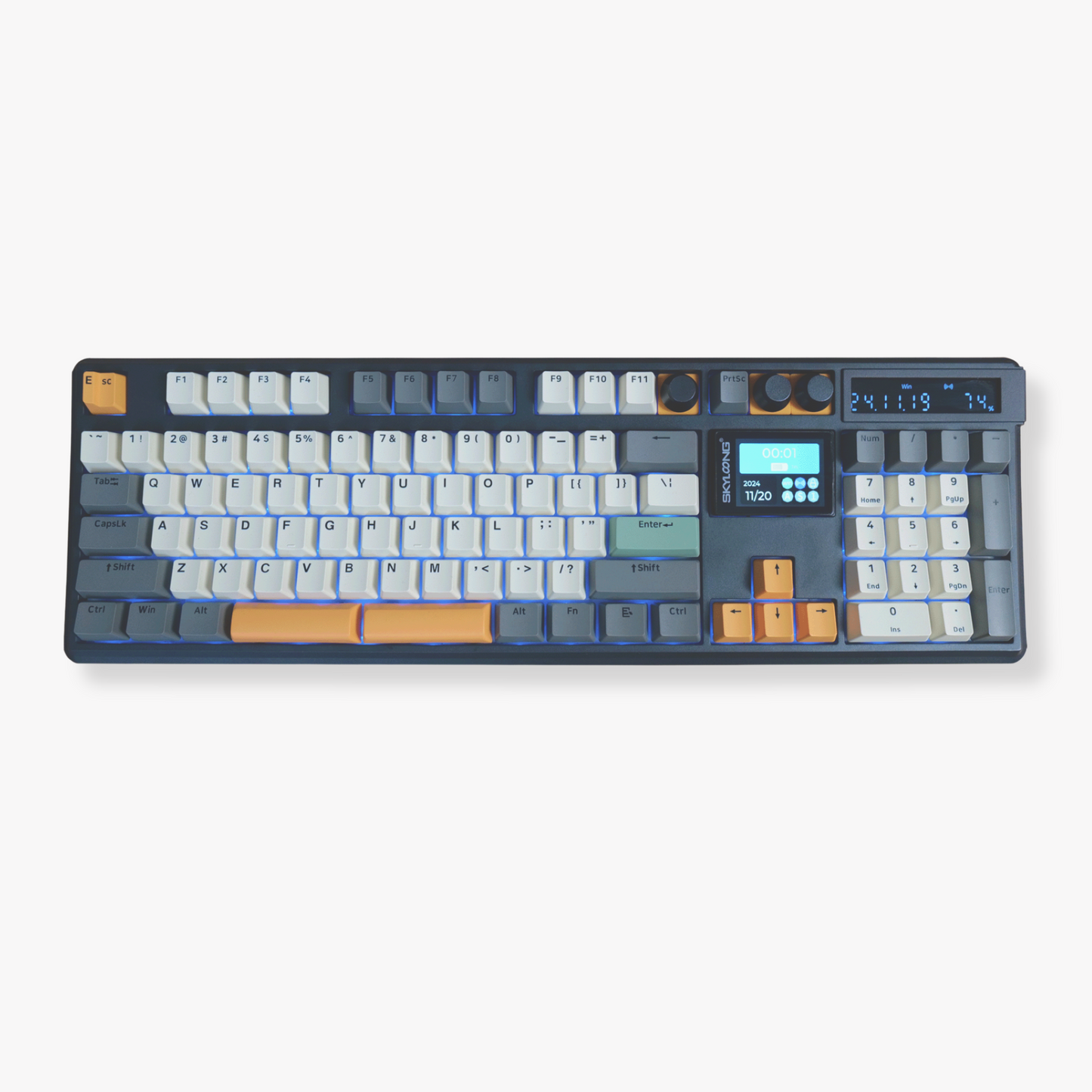

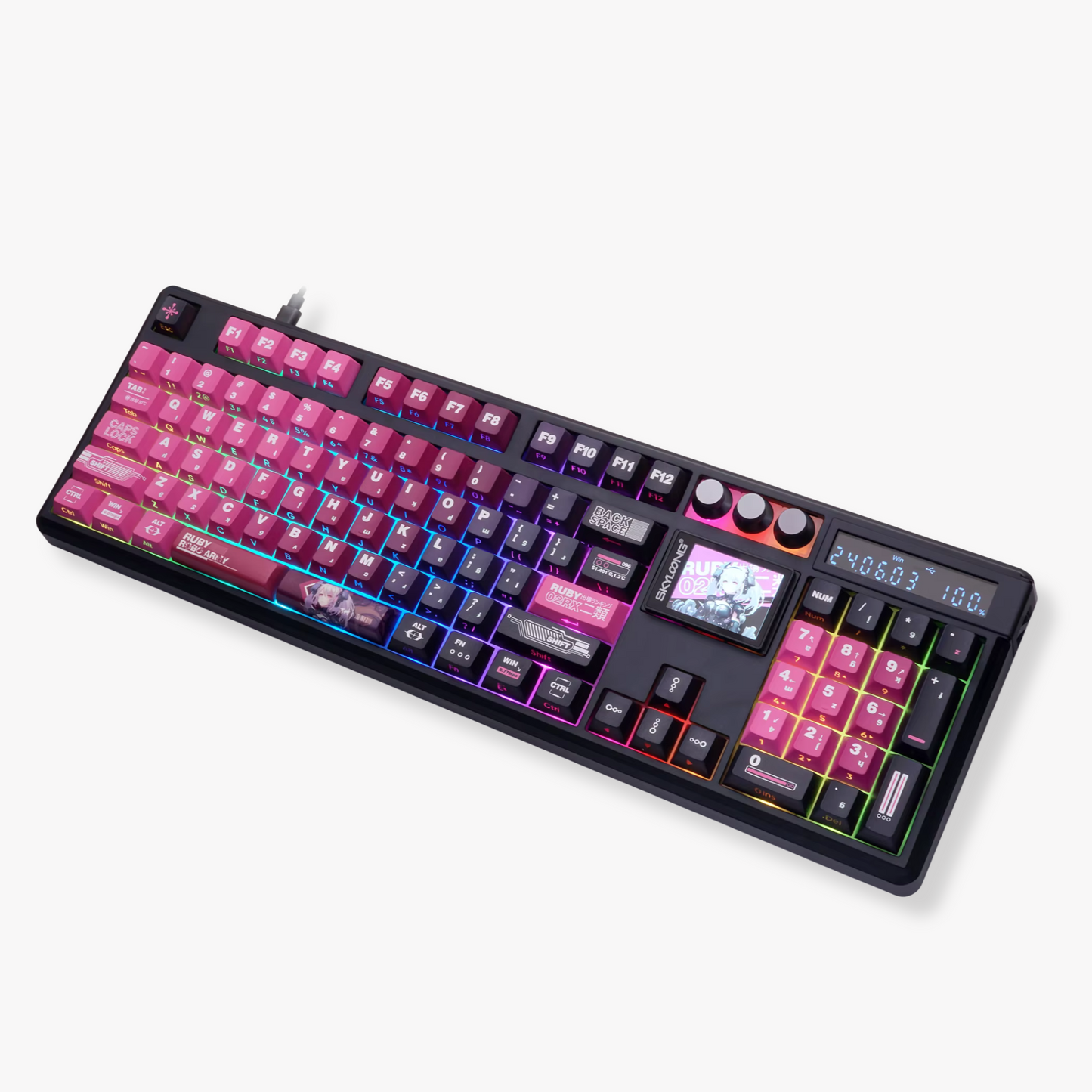

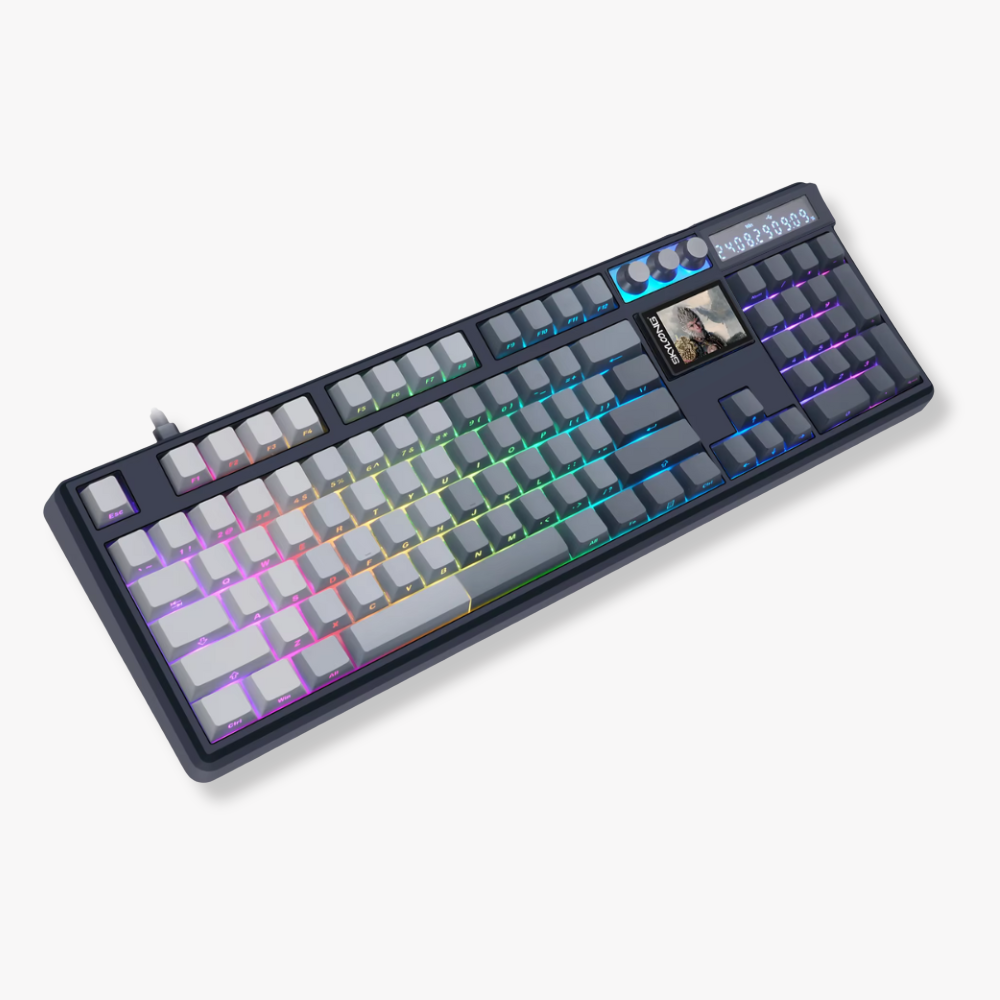

Mechanical Gaming Keyboard Full Layout with LCD Screen & 3 Knobs

Mechanical Gaming Keyboard Full Layout with LCD Screen & 3 Knobs

$359.00
$559.00 $359.00
Sale Sold out
Free Shipping
Color
Axis Body

Unlock limitless customization and performance! upgrade your setup with the GK104 Pro!

  • Voice Calculator: Quickly perform calculations with built-in voice-enabled functionality.
  • Nordic Low-Latency Three-Mode Chip: Seamless performance with Bluetooth 5.1, 2.4GHz wireless, and USB-C wired connections.
  • 8K Esports-Level Polling Rate (Wired Mode): Ultra-fast response time for competitive gaming.
  • 1K Polling Rate (2.4GHz Wireless): Enjoy smooth and responsive performance with minimal delay.
  • Programmable Split Spacebar Module: Customize your spacebar for added functionality.
  • Supports 1.7-inch / 2.0-inch TFT LCD RGB Color Screens: Personalize your display with vibrant RGB visuals.
    • Screen Image/GIF Size:
      • 1.7-inch: 160x128 (up to 15MB)
      • 2.0-inch: 320x240 (up to 15MB)
  • SKYLOONG Acoustic Structure: Experience exceptional sound quality with a new acoustic design featuring:
    • 2x3mm Acoustic Foam Poron Pads
    • Switch PE Foam
    • Sound Absorbing Foam for enhanced typing sounds.
  • Up to 6 Programmable Knobs: Tailor your controls to suit your needs. Suggested configuration:
    • Knob 1: Zoom In/Out
    • Knob 2: Music Player Control (Previous/Next, Play/Pause)
    • Knob 3: Desktop & Application Switch
    • Knob 4: Volume Control (+/-)

Take control of your workspace with these customizable and high-performance features!

  • Quality Product made for Gamers
  • 30 Days Return Policy
  • Free Shipping
View full details

Product Description

GK104 Pro Mechanical Keyboard – A Feature-Packed Solution for Gamers and Professionals

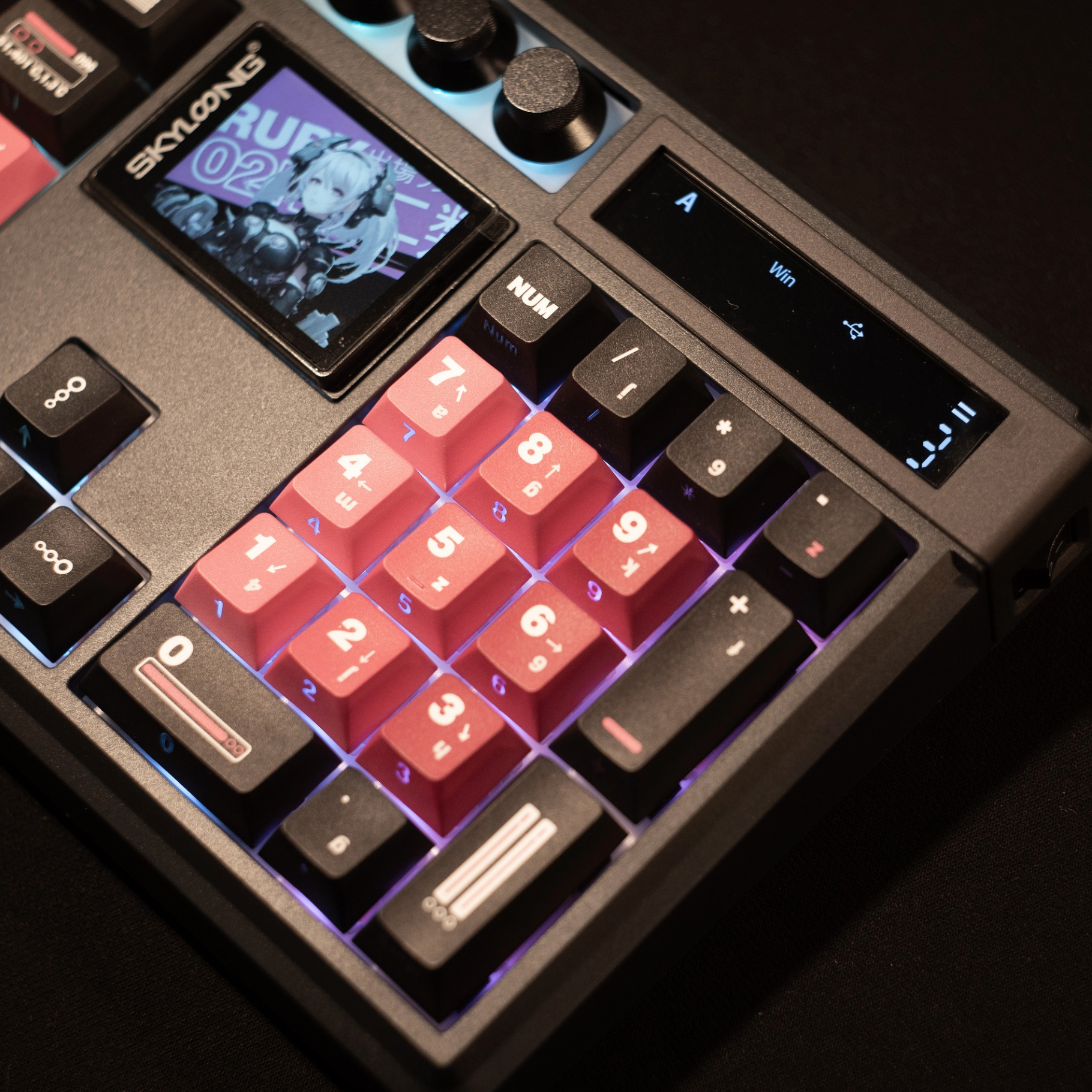

Dual Electronic Screens with Customization

The GK104 Pro boasts two screens:

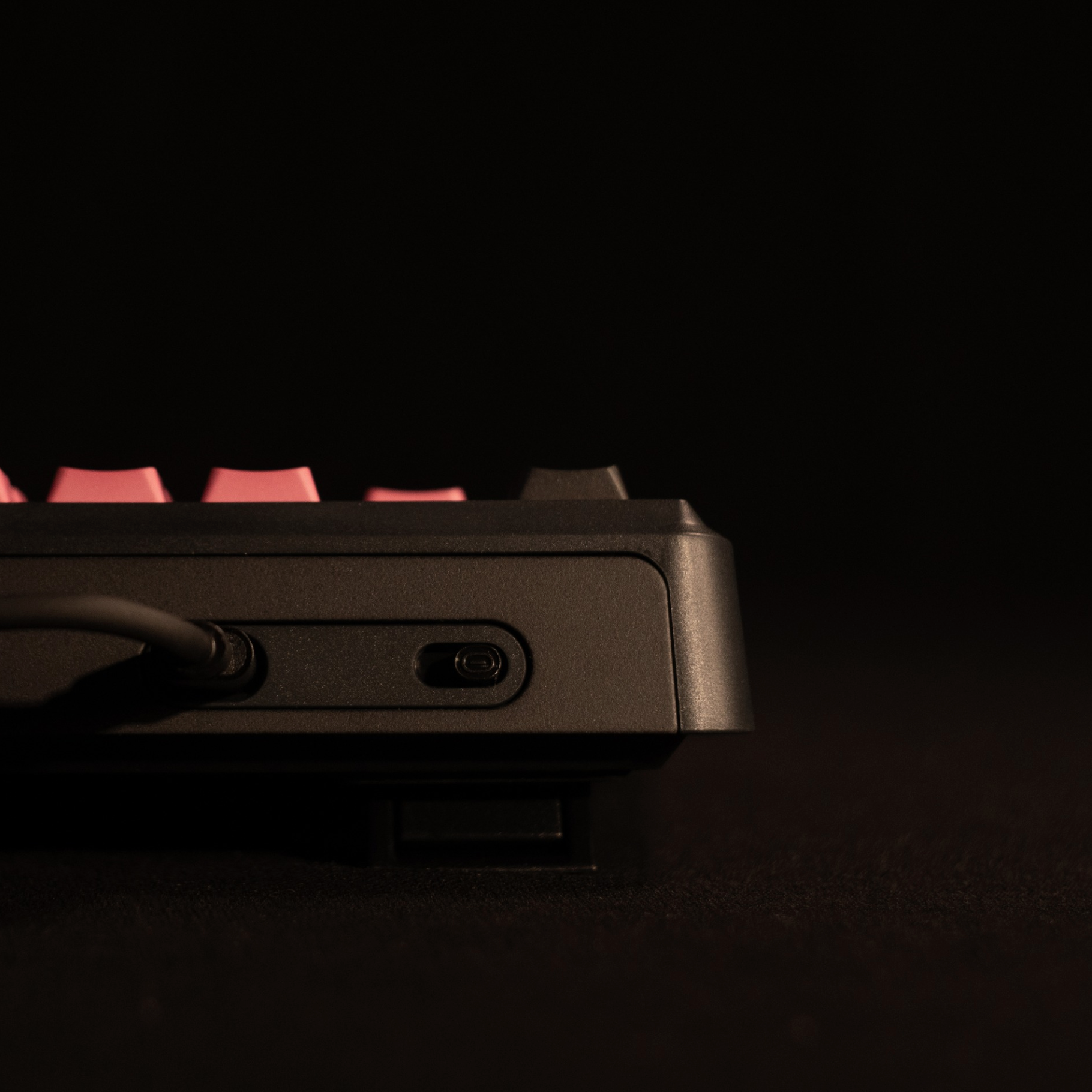

  • Fixed Digital Screen: Located in the upper-right corner, this screen provides essential information like the date, keyboard connection status, and battery level. It also functions as a calculator, supporting basic operations like addition, subtraction, multiplication, and division. This screen can be toggled on or off using the switch on the keyboard's side, and keyboard sounds can be muted or enabled via FN+0.

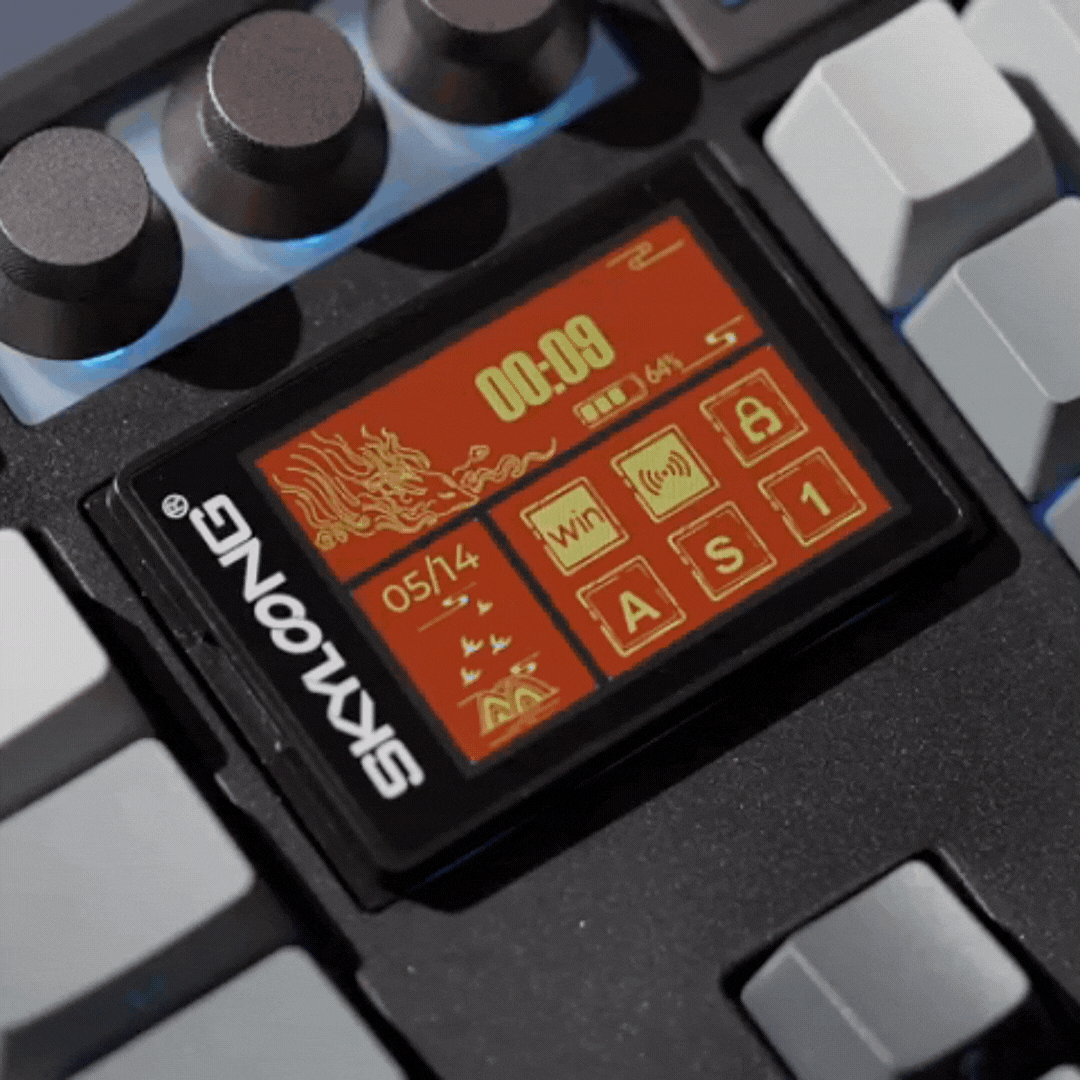

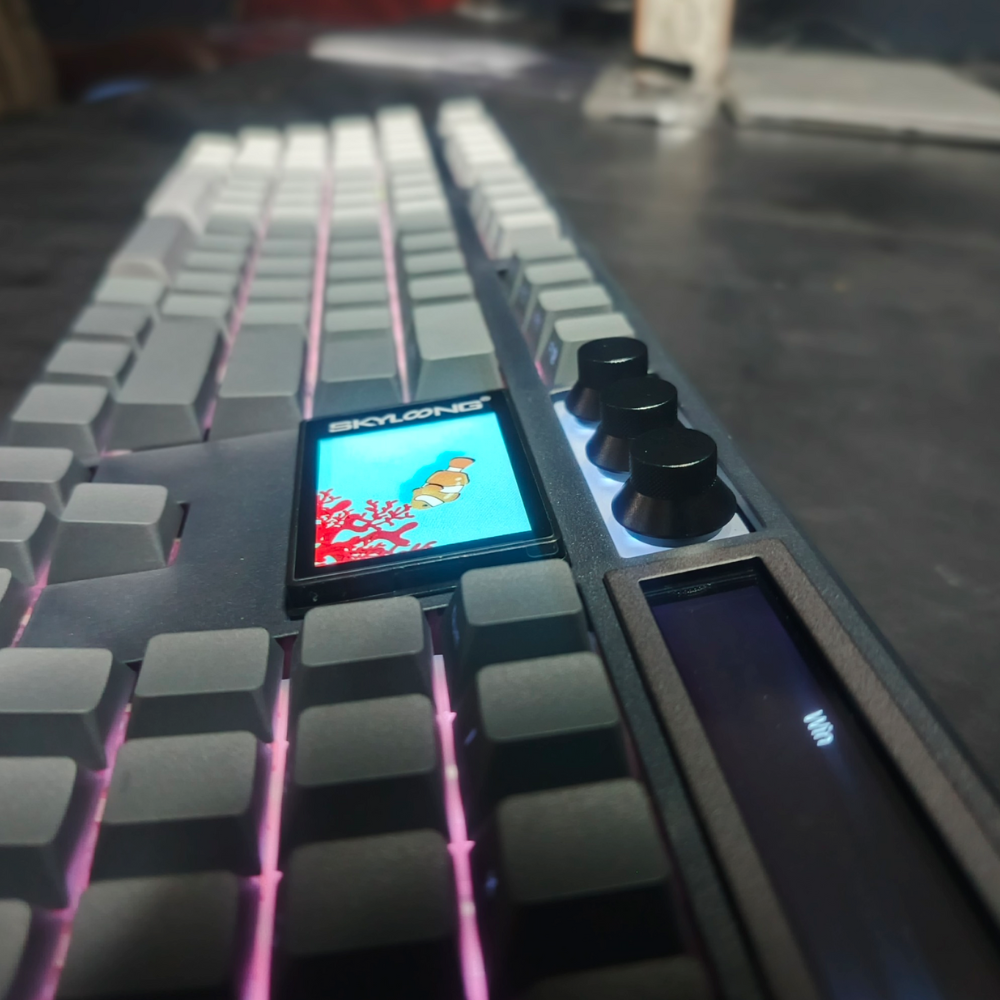

  • 2.0-inch LCD Screen: Featuring a 320x240 resolution, this customizable display supports hot-swapping and an independent driver. It allows users to import animations or images (up to 15MB), display real-time data such as the date, time, power, and connection status, and includes a typing speed test. The screen, keycaps, and switches are all replaceable for maximum personalization.

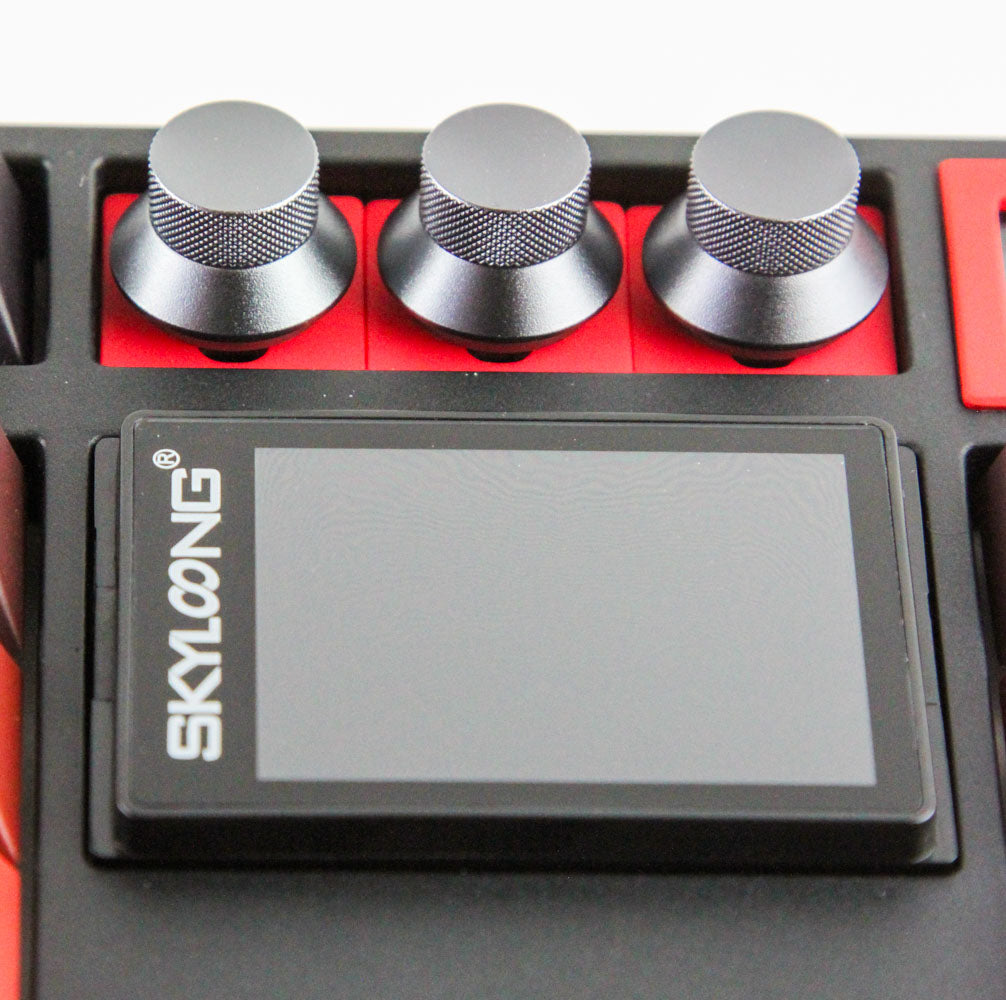

Customizable Knob Functionality

  • Three Programmable Knobs: Pre-set for volume control but fully customizable via the driver. You can assign functions like zooming, backlight adjustment, and more.
  • Expandable Knob Options: The GK104 Pro supports up to six knobs by replacing keys like ESC, F11, and F12. Additional knobs can be purchased separately to expand functionality.
  • Full Key Customization: All keys, except FN, support reprogramming through the driver to tailor the keyboard to your workflow or gaming needs.

Multi-Device and Multi-Mode Connectivity

The GK104 Pro offers versatile connectivity options:

  • Bluetooth 5.1
  • 2.4GHz Wireless
  • USB-C Wired

Powered by a high-performance Nordic wireless chip, the keyboard delivers an ultra-low latency of 0.125 milliseconds with an 8K polling rate, making it ideal for gaming. It is compatible with phones, PCs, laptops, and tablets, enabling seamless multi-device multitasking. The 8000mAh battery supports long-term use and charges quickly via USB-C.

Shock Absorption and Noise Reduction

The GK104 Pro integrates advanced features for a quieter and more comfortable typing experience:

  • TOP-Gasket Mounting: Reduces vibrations and noise.
  • Multi-Layer Foam Rubber Padding: Absorbs impact and ensures a smooth typing experience.
  • Elastic Material Buffer: Creates a barrier between the keys and the keyboard base for added durability during intense gaming or typing sessions.

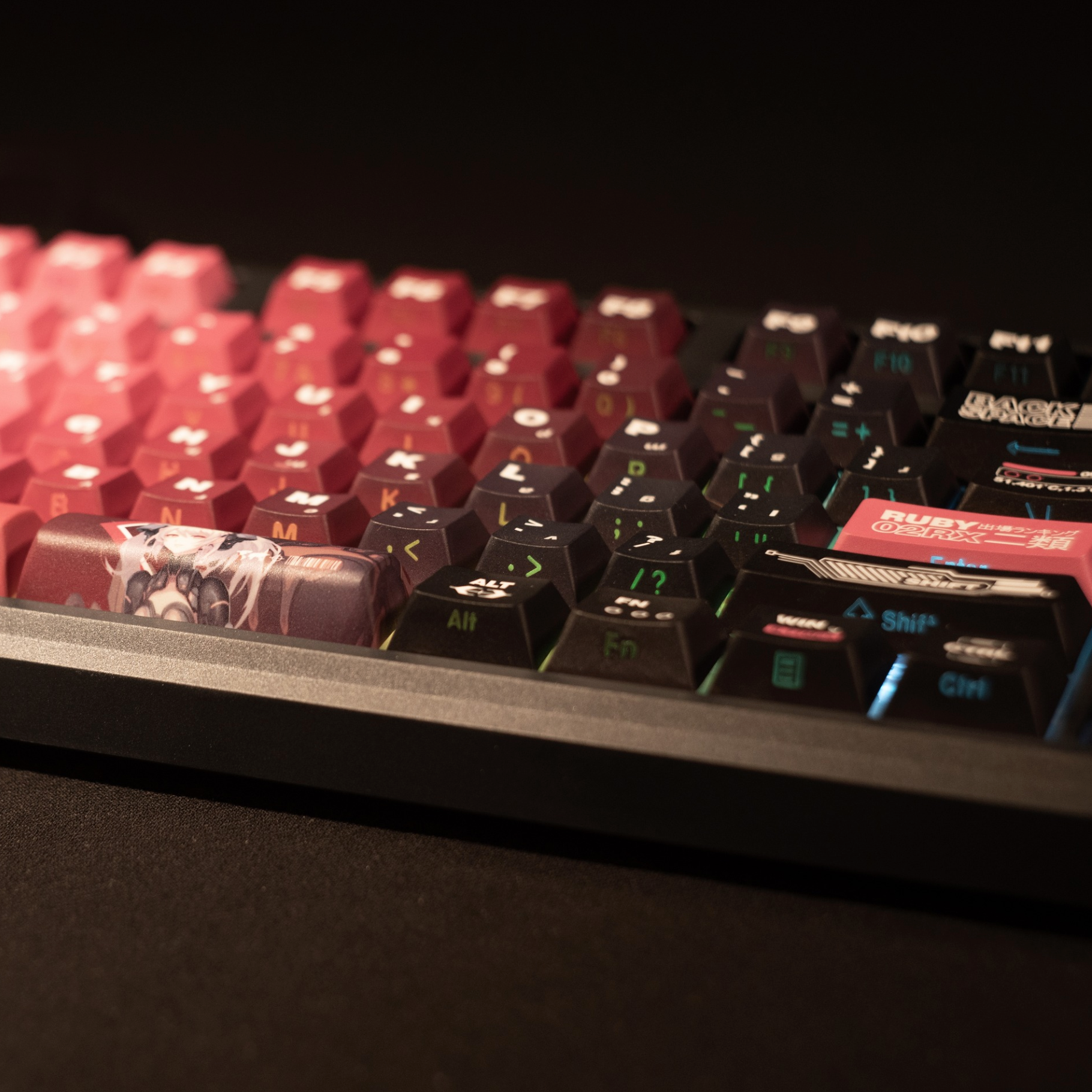

High-Performance Customized Switches

Equipped with KTT mechanical switches, the GK104 Pro offers:

  • Rose Sea-Blue: Tactile switches with a crisp, satisfying sound.
  • Rose-Pink, Rose-Silver, and Silent CuCl2: Linear switches with varying levels of sound and pressing force.

These pre-lubricated switches are responsive, fast, and perfect for both gaming and office use. The hot-swappable PCB supports most 3-pin and 5-pin MX-type mechanical switches, ensuring compatibility with a wide range of switch options. The split spacebar, screens, and knobs are also hot-swappable for maximum flexibility.

RGB Lighting and System Compatibility

  • 16.8 Million RGB Backlighting: Fully customizable with built-in driver support to meet your aesthetic preferences.
  • Multi-System Compatibility: Supports Windows 10/8/7/Vista/XP, macOS, iPad, iPhone, MacBook, and more.
  • Onboard Layers and Memory: Features three programmable layers with 8MB built-in memory for personalization.

The GK104 Pro is a versatile and feature-rich keyboard designed to meet the demands of gamers, creators, and professionals alike. Customize every aspect of your keyboard to suit your needs and elevate your typing or gaming experience today!

Swithes:

Rose Sea-Blue

Switch type: tactile switch

Operating force: 48±5gf

Pre-travel: 2±0.6mm

Total travel: 3.5±0.3mm

keystrokes: 50 million

Suitable for: Office/Game

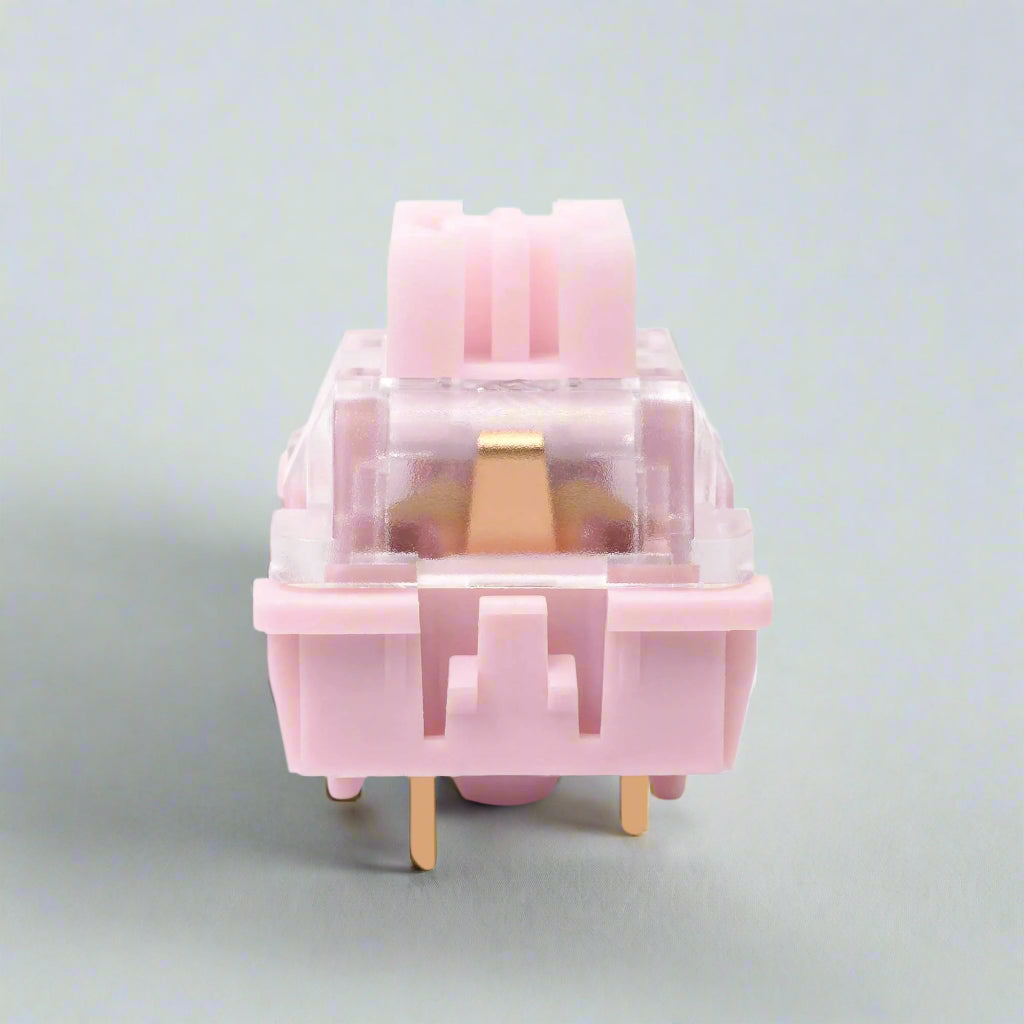

Rose Pink

Switch type: Linear switch

Operating force: 38 ± 5gf

Pre-travel: 1.9 ± 0.5mm

Total travel: 3.5 ± 0.3mm

keystrokes: 50 million

Suitable for: Office

Rose Silver

Switch type: Linear switch

Operating force: 45±5gf

Pre-travel: 1.20±0.4mm

Total  traveel: 3.5±0.3mm

Keystroke: 50 million

Suitable for: Game


Silent CuCl2（Silent Switch）

Switch type: Linear switch

Operating force: 45±5gf

Pre-travel: 2±0.5mm

Total  traveel: 3.8±0.5mm

Keystroke: 50 million

Suitable for: Office/Game


Silent Ruellia（Silent Switch）

Switch type: Tactile switch

Operating force: 50±10gf

Pre-travel: 2±0.5mm

Total  traveel: 3.8±0.5mm

Keystroke: 50 million

Suitable for: Office/Game

Specifications

Brand Name: Skyloong

Operation Style: Mechanical

Language: English

Type: Bluetooth Wireless

Keyboard Standard: 104 Keys

Keycup printing: Dye-sublimation

Keycup material: PBT plastic

Backlight Type: Multicolor

Interface Type: USB

Axis Body Brand: KTT/SKYLOONG

Switches Hot swap: Yes

Full Size keyboard: Yes

Feature1: USB-C Wired Keyboard

Feature2: Bluetooth Mechanical Keyboard

Feature4: Low Latency Gaming Keyboard

Feature5: Keyboard With Screen

Feature6: Keyboard With 3 Knobs

Feature7: 104 Keys Keyboard

Feature8: Programmable Macro Keyboard

Feature9: Keyboard with Calculator function

Model: GK104 Pro

Layout: ANSI

Backlight: South-Face

Keycap:Twilight(Side-Print)/Peach/Ti-Gray/Quantum Mech/JIUWEI Pudding/WUKONG(New Arrival)

Switch: Rose Sea-Blue/Rose Pink/Rose Silver/Silent CuCl2(Quiet)/Silent Ruellia(Quiet)

Keyboard size: 45.2x14.6x3.5cm/17.8x5.7x1. 37 inches

Keyboard weight: 1.35 kg/2.97 lbs

Package weight:1.8kg/4.1 lbs

Backlight: 16.8 million RGB

Wired Polling Rate: 8000hz

2.4Ghz Polling Rate:1000hz

BT Polling Rate:125hz

Screen Resolution:320*240

Screen Image Limit:<15M

Keyboard Waterproof:None

Connectivity: Wired (USB-C)/2.4ghz Wireless/Bluetooth

Battery: 8000mAH lithium battery(4000mah*2)

USB-C cable length (meters): 1.5m/4.921 feet (approx.)

Hot-swappable: supported (including screen and Knobs)

Power supply: USB port/battery

Applicable to: PC/laptop/tablet/mobile phone

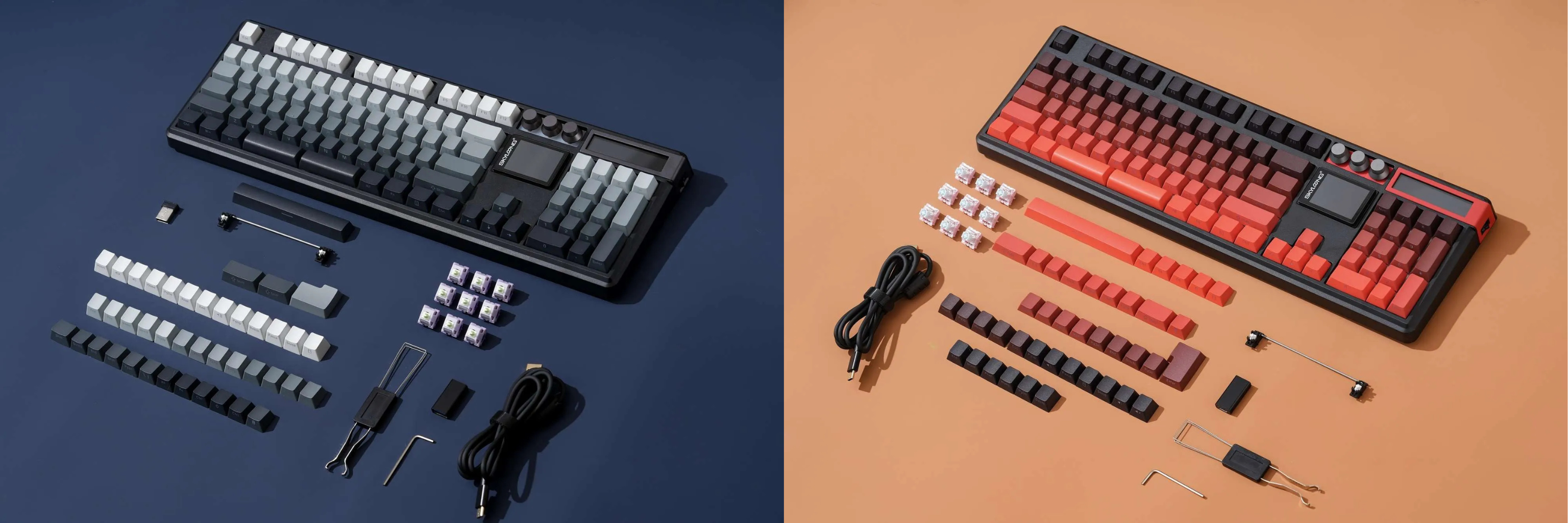

Package include : GK104 Pro keyboard*1 (3 knobs and screen installed), 2-in-1 keycap/switch puller*1, extra switches, extra keycaps, decorative sheet, 2.4G wireless receiver*1, USB-C cable*1, satellite switch*1, user manual (Chinese and English).

1 2

🔄 Application Switch

Buy Now

🎵 Music playlist control

🔍 Zoom in and out.

2.0 Inch HD

Display Indicator Functions:

  • Current time
  • Battery status
  • Device system
  • Connection mode
  • Num lock
  • Caps lock
  • Image/Gif Display

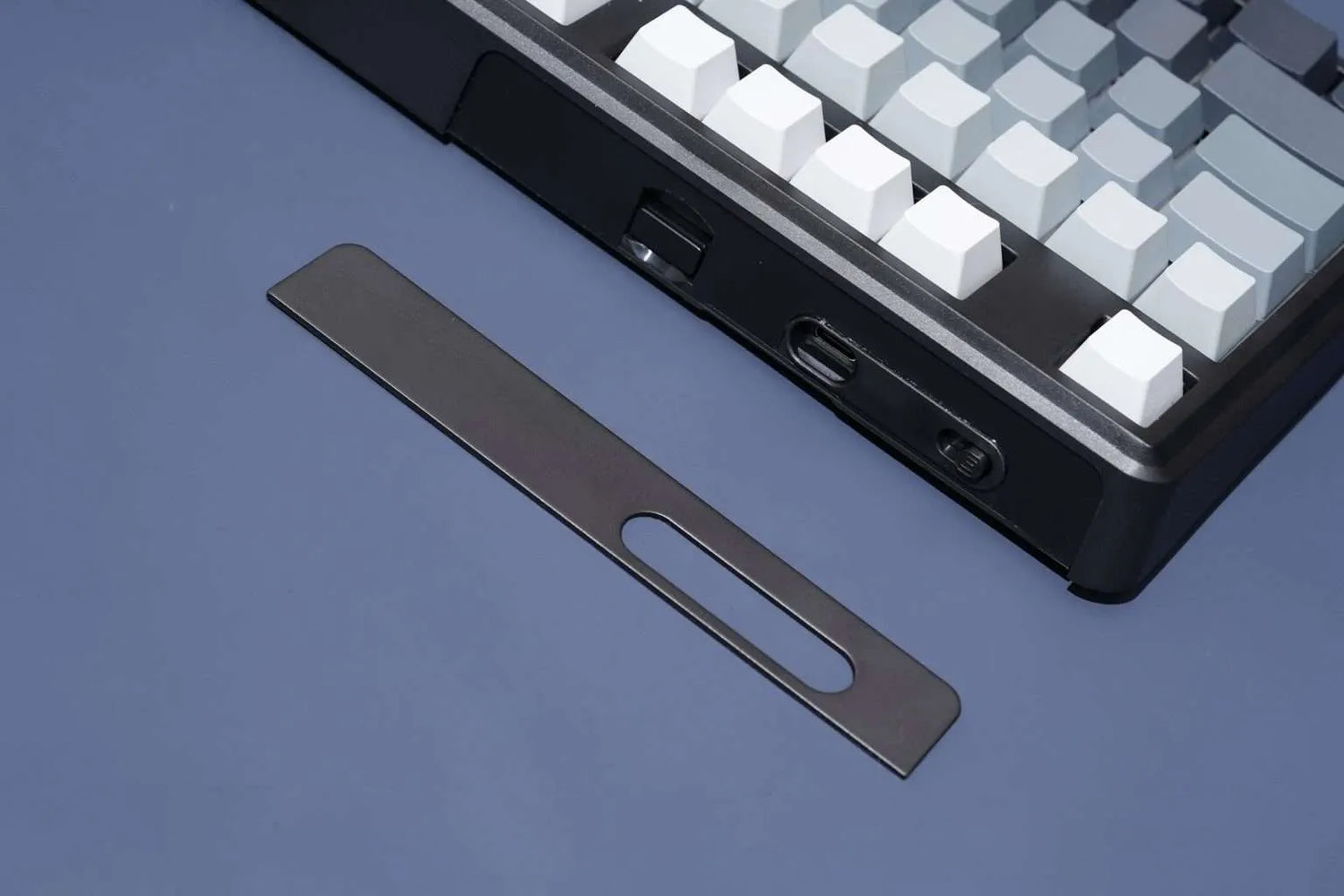

3 Mode Connectivity

Easily connect up to four devices at once(Bluetooth supports to connect two devices), including Android, iOS, Windows, and macOS systems.

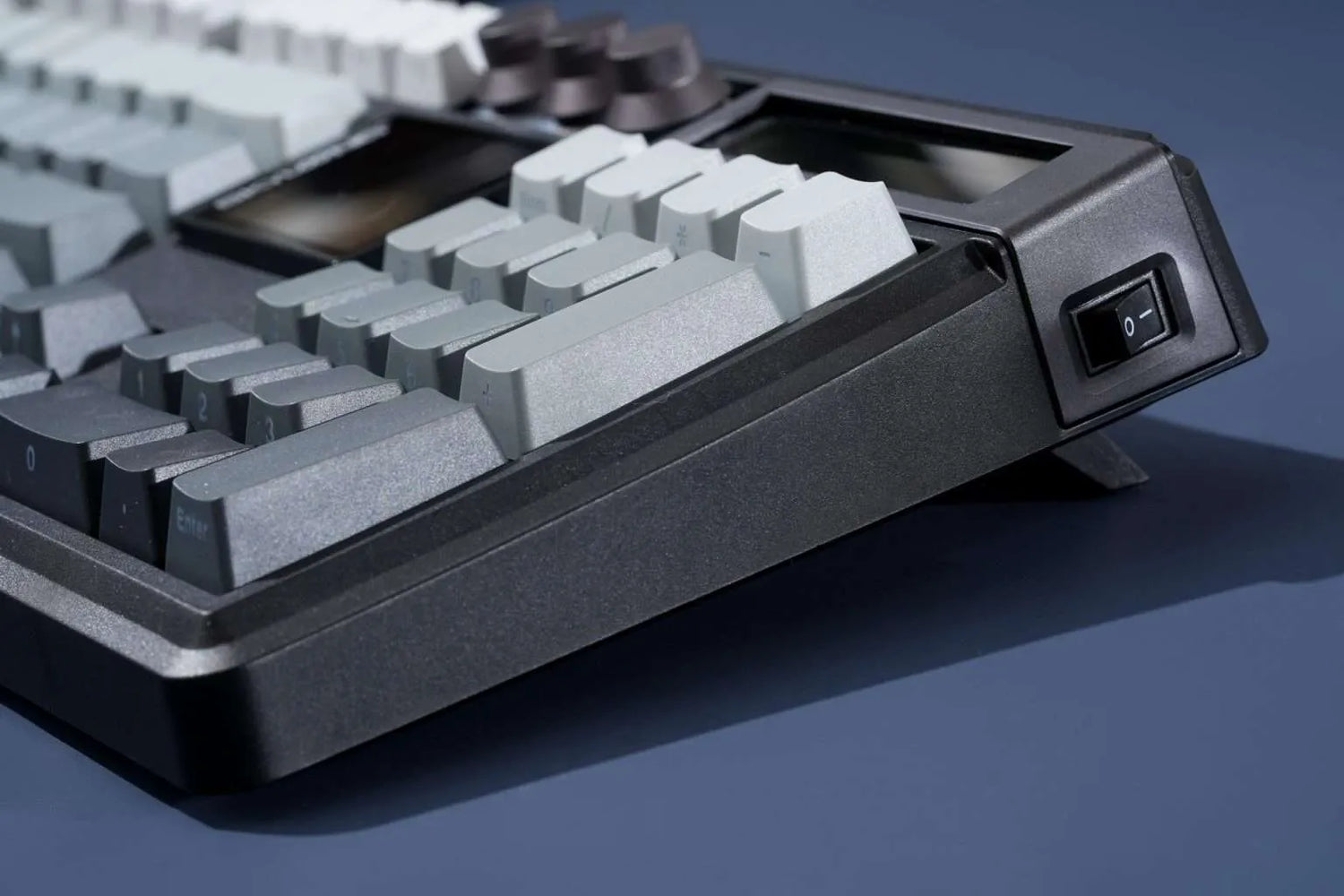

Ergonomic Support

Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.

Button label

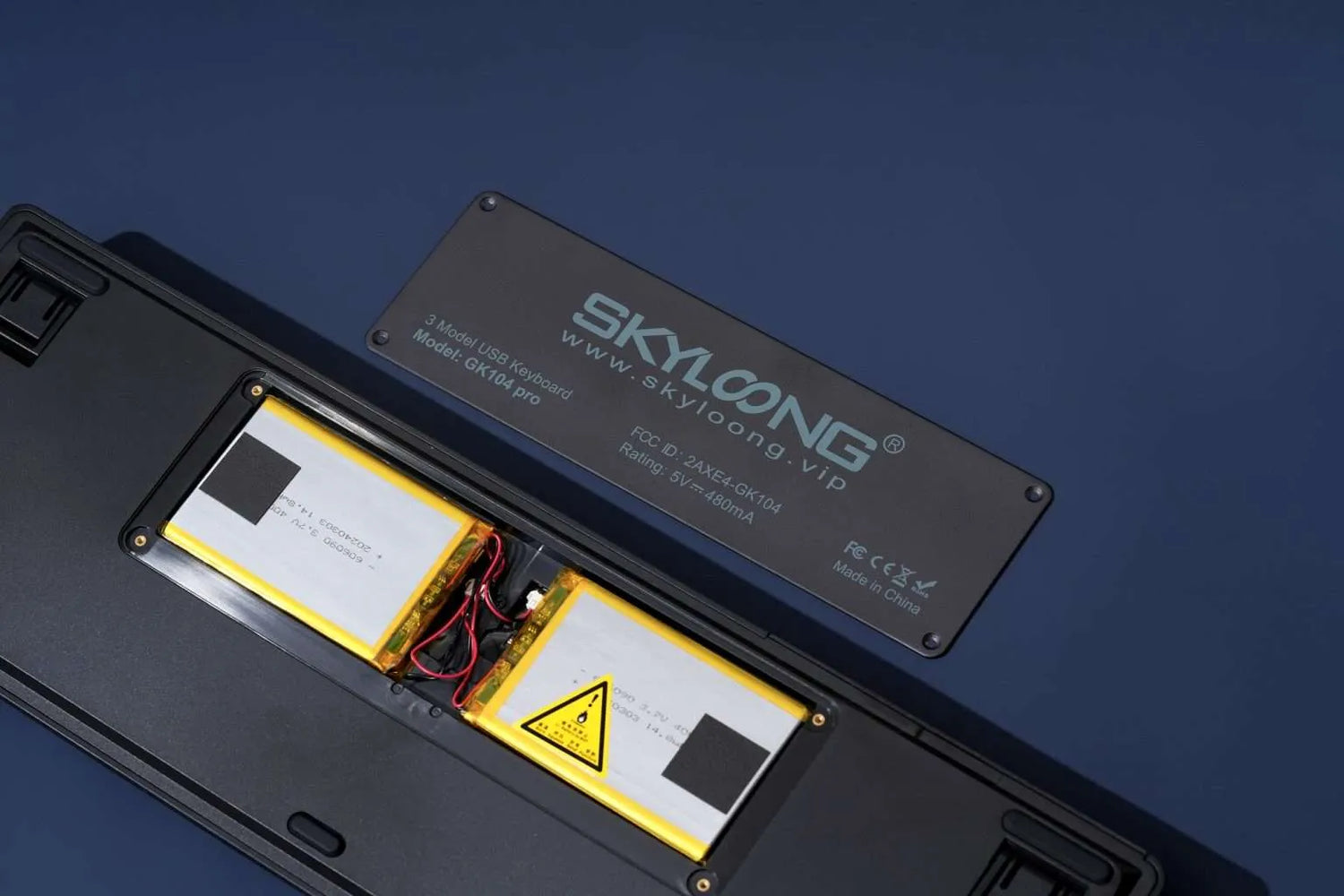

8000mAh Battery

This keyboard has a detachable back design for quick and easy battery replacement. This feature is useful for users who need to replace the battery to save costs instead of replacing the entire keyboard.

Button label

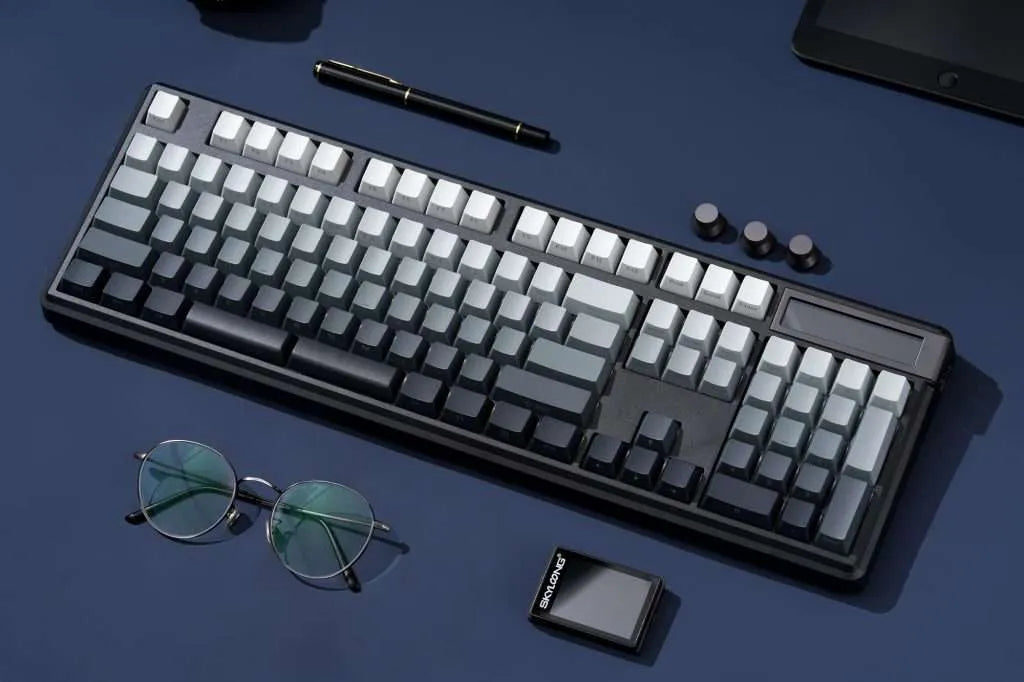

You've Got Choice

The knobs and screen can be removed easily with a switch puller, then assemble the switches and keycaps.

Calculate by One Trigger

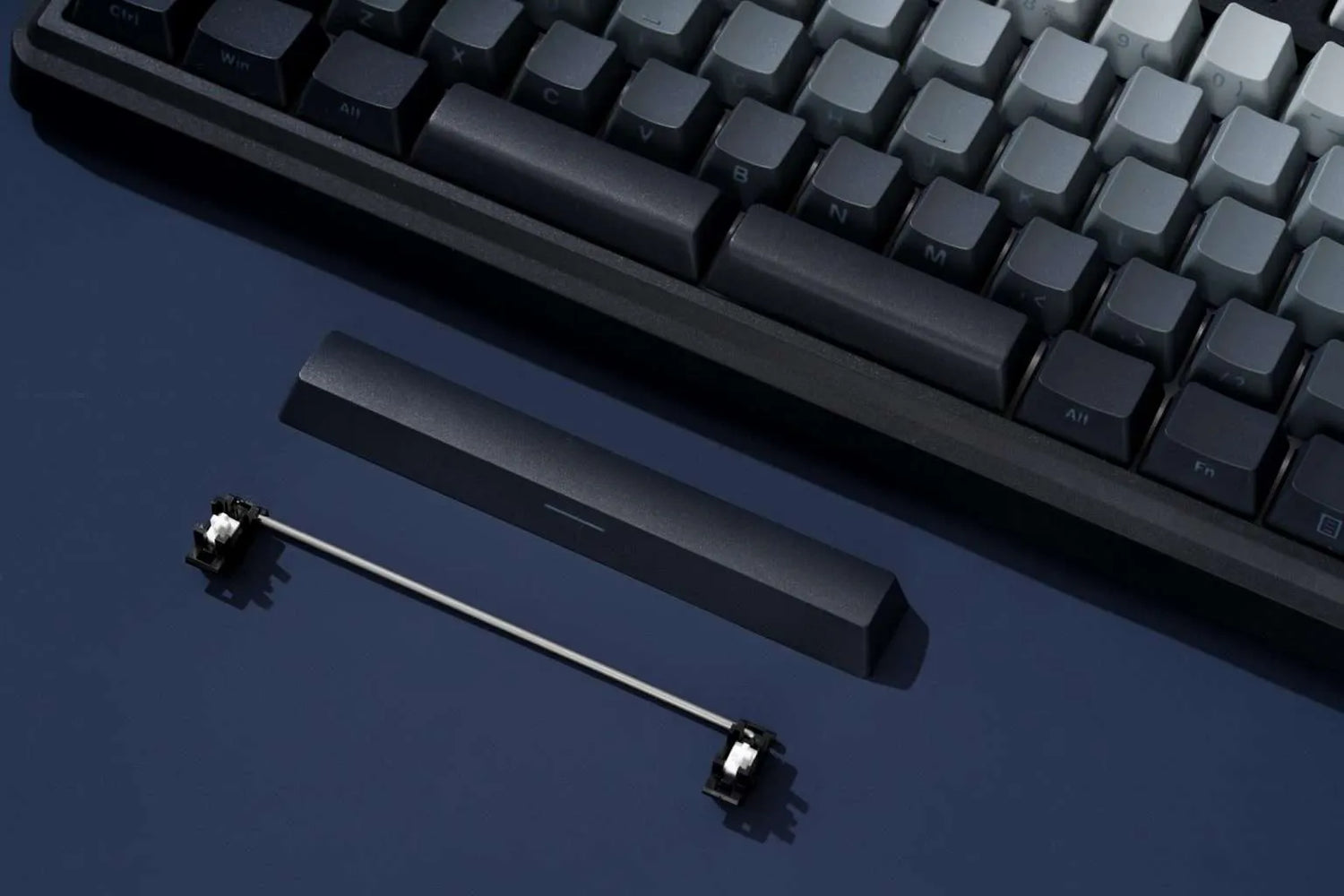

Split Spacebar

Set an additional function on the second spacebar via skyloong software according to your demands.

Don’t like the split spacebar design? No worries, you can easily change it to a classic spacebar.
